Reactor on a continuous basis. R V dt dN j j 0 j j N j N j dN t rV Conc. With this information it is clear that the batch reactor has ๐0 ๐0. A batch reactor is a constant volume reactor has no input or output when the chemical reaction is occurring. Reactor on a continuous basis. Pin On Ideas For The House.
Case studies 81 Quakers Hill STP 82 SBR for Nutrient Removal at Bathhurst Sewage Treatment Plant 83 St Marys Sewage Treatment plant 84 A Small Cheese-Making Dairy in France 85 A Full-scale Sequencing Batch Reactor System for Swine Wastewater Treatment Lo and Liao 2007. A semi-batch reactor however allows partial filling of reactants with the flexibility of adding more as time progresses. The operating expressions for these reactors. Moles of A fed moles of A reacted For continuous-flow systems time usua lly increases with increasing reactor volume. This paper addresses a systematic methodology for batch and semi-batch reactor design and optimisation for both ideal and non-ideal mixing. Reactor Design An Overview Sciencedirect Topics.
Describe how to use equal-area differentiation polynomial fittingg g y numerical difference formulas and re gression to analyze experimental data to determine the rate law. 23 The Ideal Batch Reactor 21 Fig. As such this is not a true batch reactor as is the conventional SBR. Costs of SBR 8. Sequencing batch reactor design criteria performance costs. Batch Reactor An Overview Sciencedirect Topics.
So far experiments have. Once the kinetics is known the reactor design can be made based on material balance. In order to adequately perform Step l-Iden- tlfy Failure Scenarios some discussion of information requirements in gen- eral and batch reactor systems in particular is. For an ideal CSTR reactor. In addition a batch model is available for batch reactors. Pdf Sequencing Batch Reactors Principles Design Operation And Case Studies Semantic Scholar.
Costs of SBR 8. It modified allow reactant addition andor product removal in time. Design criteria operation and maintaince aspects performance and costs. In batch reactor design the engineer typically knows what A First Course on Kinetics and Reaction Engineering AFCoKaRE Unit 18 2. A semi-batch reactor however allows partial filling of reactants with the flexibility of adding more as time progresses. Sequential Batch Reactor Sewage Treatment Water Treatment Wastewater.
Rate Laws Write down rate law in terms of limiting reactant. Down time per batch 24 Design criteria and dimensioning of the reactor chamber The reactor was designed with 45 L working volume and 2 L clearance volume and baffles. The design configurations of the ICEAS and the SBR are otherwise very similar. A baffle wall may be used in the ICEAS to buffer this continuous inflow. In addition a batch model is available for batch reactors. Reactor Design An Overview Sciencedirect Topics.
However before the design can be carried out it is necessary to perform and analyze a batch reactor experiment to determine the specific reaction rate constant k A. CLASSIFICATION OF REACTORS Although the purpose of this chapter is to present the determination of CSTR specifications Batch and Plug flow reactors will be briefly described Batch Reactor Batch reactors are usually simple in design with minimum auxiliary and instrumentation requirements. One design may have low reactor cost but the materials leaving the unit may be such that their treatment requires a much higher cost than alternative designs. The batch reactor is often a good reactor archetype for slow reactions. The unit processes. 1 4 Continuous Flow Reactors Mole Balances In Chemical Reaction Engineering Informit.
It modified allow reactant addition andor product removal in time. The design configurations of the ICEAS and the SBR are otherwise very similar. Constant volume batch reactor Batch time t required to achieve a 0 A conversion X. Reactor design and reactor engineering. In this module several ideal types of reactors are discussed based on two modes of operation batch and continuous and ideal flow patterns back-mix and tubular for the continuous mode. Pdf Sequencing Batch Reactors Principles Design Operation And Case Studies Semantic Scholar.
Selection of the design basis for this example will follow the nine-step process explained in Chapter 2. As such this is not a true batch reactor as is the conventional SBR. As such the mole balance is ๐๐ ๐๐. Chemical Reactor DesignChemical Reactor Design. A baffle wall may be used in the ICEAS to buffer this continuous inflow. Chemical Reactor Design And Control Aiche.
General Mole Balance Equation GMBE 2. Reaction rate varies with time. Are derived from. NaOH CH 3 COOC 2 H 5 C 2 H 5 OH CH 3 COONa 12 Introduction A batch reactor may be described as a vessel in which chemicals are placed to react. It modified allow reactant addition andor product removal in time. Design And Development Of A Rotating Heater Pyrolysis Reactor Porat The Canadian Journal Of Chemical Engineering Wiley Online Library.
27 Batch reactor with external heat exchange jacket left and coil right The values of ER can be computed from the standard internal energy change ERo which refers to reactants and products in their standard states not mixed at 1 atm and 25C but also depends on temperature and for nonideal solutions on the heat of mixing of the components. A baffle wall may be used in the ICEAS to buffer this continuous inflow. However before the design can be carried out it is necessary to perform and analyze a batch reactor experiment to determine the specific reaction rate constant k A. Description of a Wastewater Treatment Plant Using an SBR. Chemical Reactor DesignChemical Reactor Design. Batch Reactor An Overview Sciencedirect Topics.
Describe how to use equal-area differentiation polynomial fittingg g y numerical difference formulas and re gression to analyze experimental data to determine the rate law. Adequate heat distri-bution within the reactor was factored into the design process. Since the reaction will be. There are five primary reactor designs based in theory. 27 Batch reactor with external heat exchange jacket left and coil right The values of ER can be computed from the standard internal energy change ERo which refers to reactants and products in their standard states not mixed at 1 atm and 25C but also depends on temperature and for nonideal solutions on the heat of mixing of the components. Polymerization Reactor An Overview Sciencedirect Topics.
R V dt dN j j 0 j j N j N j dN t rV Conc. Down time per batch 24 Design criteria and dimensioning of the reactor chamber The reactor was designed with 45 L working volume and 2 L clearance volume and baffles. R V dt dN j j 0 j j N j N j dN t rV Conc. Sequencing Batch Reactor Design and Operational Considerations iv T his document is designed to be used by municipalities engineers regulators operators and other interested parties that use design or are thinking about implementing sequencing batch reactor SBR wastewater treatment systems. Stoichiometry relate concentration to volume and number of moles for batch reactors or to volumetric flow rate and molar flow rate for flow reactor Relate volume or volumetric flow rate to conversion. Reactor Design General Principles Sciencedirect.
In batch reactor design the engineer typically knows what A First Course on Kinetics and Reaction Engineering AFCoKaRE Unit 18 2. Reactor on a continuous basis. It can be applied to. As such the mole balance is ๐๐ ๐๐. Describe how to use equal-area differentiation polynomial fittingg g y numerical difference formulas and re gression to analyze experimental data to determine the rate law. Reactor Design General Principles Sciencedirect.

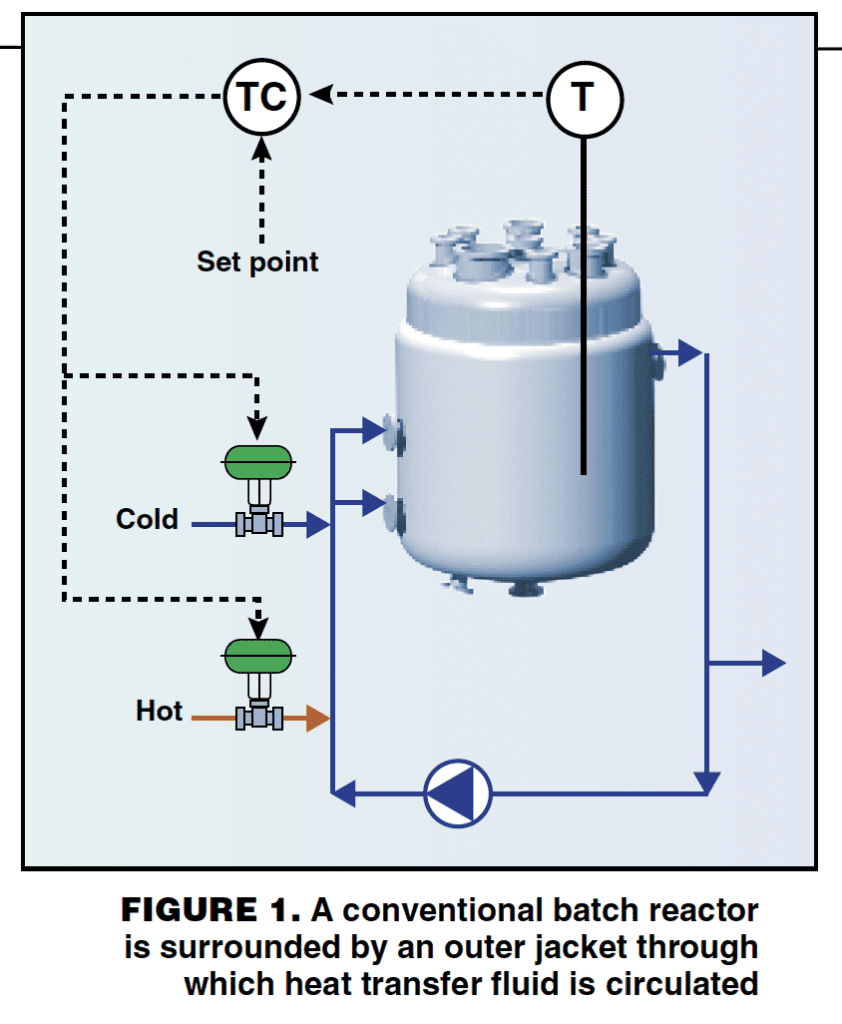

Stoichiometry relate concentration to volume and number of moles for batch reactors or to volumetric flow rate and molar flow rate for flow reactor Relate volume or volumetric flow rate to conversion. NaOH CH 3 COOC 2 H 5 C 2 H 5 OH CH 3 COONa 12 Introduction A batch reactor may be described as a vessel in which chemicals are placed to react. Once the kinetics is known the reactor design can be made based on material balance. As is becoming common-place now this drug is grown inside a cell as a by-product of the regular cellular processes. Rate Laws Write down rate law in terms of limiting reactant. Sensing Change In Batch Reactors Chemical Engineering Page 1.
